Product Information

Brand:

Fanimation

Brand Category:

Indoor/Outdoor Smart Ceiling Fan

Brand Product Description:

Odyn Custom - 64 inch - MWW with DWAW Blades and LED LK

Shipping Method:

Ground

SKU:

FPD8152MWW-64DWAW

UPC:

840506079496

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K/4000K/5000K

Efficiency:

269

Lamping Features:

• Watts Per Bulb: 18
• Voltage Cycles: 60 Hz

Lamping Included:

Bulbs Not Included

Lamping Type:

LED Module

Lead Wire Length:

80

Lumens:

1600

Primary Number of Bulbs:

1

Socket:

Connector Pin

Total Number of Bulbs:

1

Voltage:

120

Wattage Max:

18.00

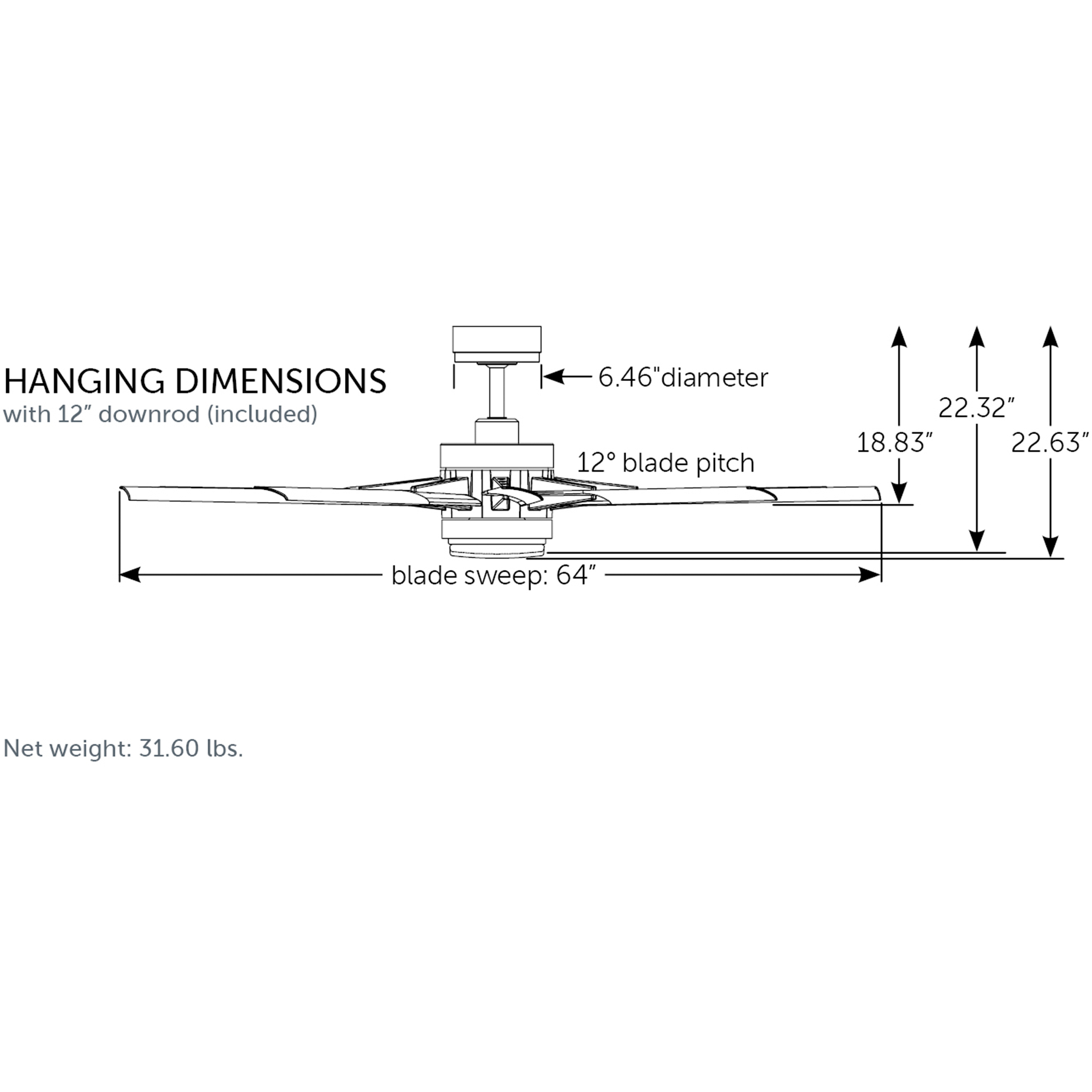

Dimensions and Measurements

Backplate/Canopy Extension:

2.58

Backplate/Canopy Height:

6.46

Backplate/Canopy Width:

6.46

Diameter:

8.27

Height:

22.63

Length:

64

Weight:

31.31

Width:

64

Fan Blade Information

Fan Blade Pitch:

12

Fan Blade Span:

64

Number of Fan Blades:

9

Fan Operational Information

Fan Features:

Cap Included: Yes
• Included Control: TR305
• Included Control Type: Handheld
• Ceiling to Blade Edge Inches: 18.83
• Ceiling to Bottom (No LK) Inches: 22.32
• Ceiling to Bottom (With LK) Inches: 22.63
• Blade Reversible Yes or No: No
• Blade Material: Composite
• Blade Finish Method Type: Painted
• Motor Type: DC
• Motor Reversible Yes or No: Yes
• Motor Size: 135
• Motor Finish Method Type: Painted
• Reverse Switch Location: Control
• Number of Speeds: 16
• Maximum Slope Degree: 27
• Avg Estimated Yearly Energy Cost: 6
• Avg Estimated Yearly Energy Cost on HIGH: 8
• Avg CFM Energy: 4934
• CFM Low: 2242
• CFM Medium Low: 4011
• CFM Medium: 5706
• CFM Medium High: 7155
• CFM High: 8415
• Fan Wattage: Watts Low: 3, Watts Medium: 10, Watts High: 30
• Fan Efficiency: Airflow Efficiency Low: 757, Airflow Efficiency Medium Low: 804, Airflow Efficiency Medium: 586, Airflow Efficiency Medium High: 368
• RPM: RPM Low: 29, RPM Medium Low: 48, RPM Medium: 67, RPM Medium High: 86, RPM High: 99
• Current Draw: Current Draw Low: 0.06, Current Draw Medium: 0.16, Current Draw High: 0.44

Motor Wattage:

22

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

Energy Star:

Yes

UL Ratings:

UL/cUL Wet

Warranty:

Limited Lifetime Warranty

Additional Details

Chain Cord Features:

Rod 12in.

Features:

• POWER: The 16-speed, quiet and energy efficient DC motor provides airflow up to 8,415 CFM
• LIGHTING: Includes integrated 18-watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology, providing a selection of light colors ranging from warm white, bright light or daylight with opal frosted shade
• TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, provides a selection of light colors ranging from warm white, bright light or daylight and Wi-Fi fanSync, which provides fan control with a smart device or voice assistant
• CONTROL: Use your smart home device with our fanSync app, or use the included TR305 hand-held remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds, light levels, CCT Select, timer, powering on/off, and fresh air, reverse, home away, safe exit modes
• LOCATION: Wet Rated for indoor and outdoor use in wet locations, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
• FINISH: Matte White ceiling fan from the Odyn Custom Collection features 9 Dark Walnut blades
• SAVINGS: Features a reversible motor that allows you to change the direction of airflow seasonally, helping maximize comfort throughout the year while supporting more efficient heating and cooling in your home.
• INSTALLATION: Designed for flat or slightly sloped ceilings, the fan comes with a 12-inch downrod. Optional downrods up to 72 inches are available to achieve the optimal 79 ft hanging height for maximum airflow.
• WARRANTY: Limited Lifetime Warranty for the original purchaser, providing long-term motor coverage and dependable performance you can trust. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
• Additional Features:
  • Compatible Accessories: CCK8002MWW, SCB1-52
  • Compatible Blades: BPW8152-56DWAW, BPW8152-72DWAW, BPW8152-72WEW, BPW8152-56BNW, BPW8152-56BLW, BPW8152-72BNW, BPW8152-72MWW, BPW8152-64DWAW, BPW8152-72BLW, BPW8152-56WEW, BPW8152-64MWW, BPW8152-64WEW, BPW8152-56MWW, BPW8152-64BLW, BPW8152-64BNW
  • Compatible Controls: TW306
  • Fan Energy Star 4: Yes
  • Light Kit Energy Star 4: Yes
  • Regulated Product Yes or No: Yes
  • DOE-FTC Uploaded: Yes
  • CEC Uploaded: Yes
  • Prop 65 Warning: This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go towww.P65Warnings.ca.gov
