Product Information

Brand:

Fanimation

Brand Category:

Ceiling Fan

Brand Product Description:

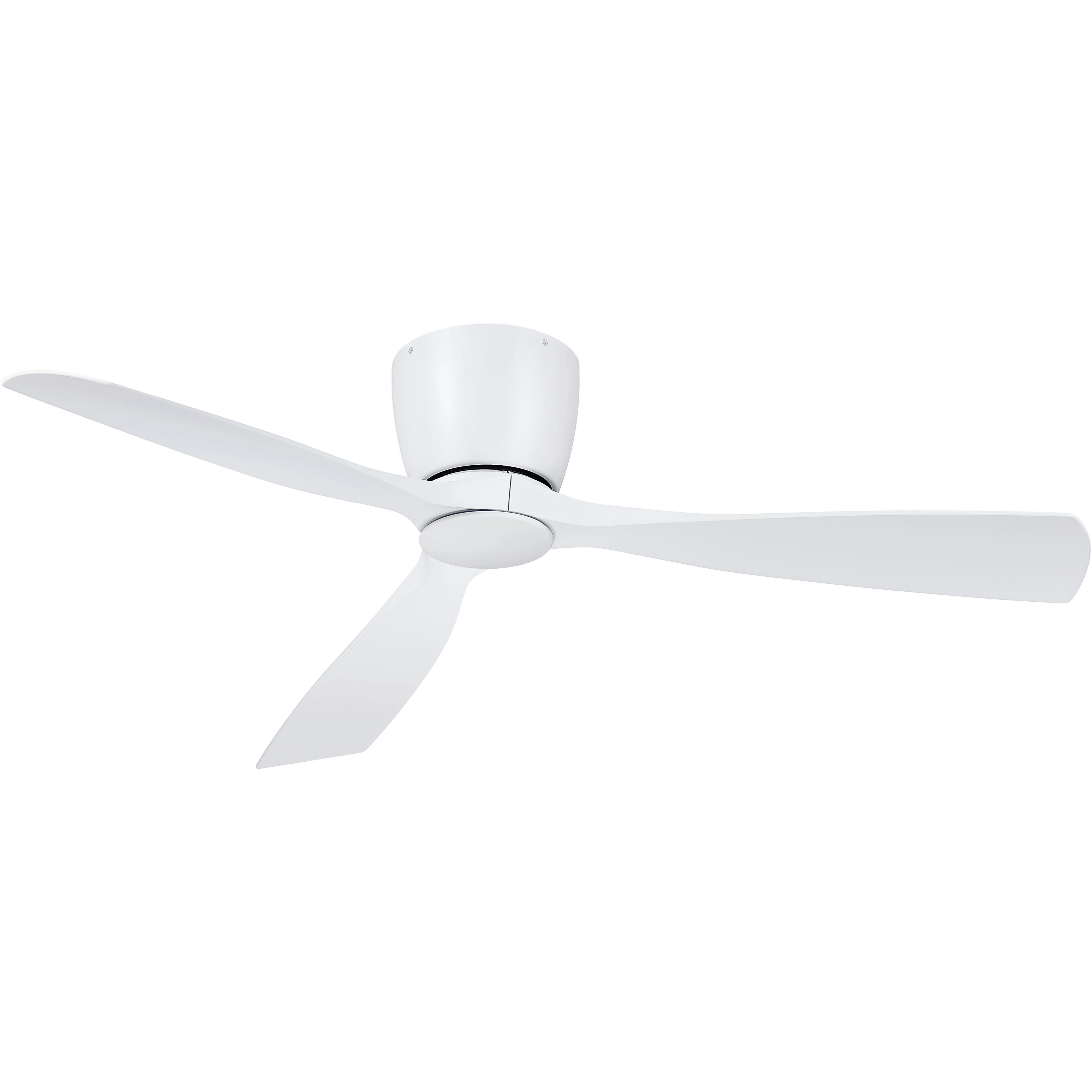

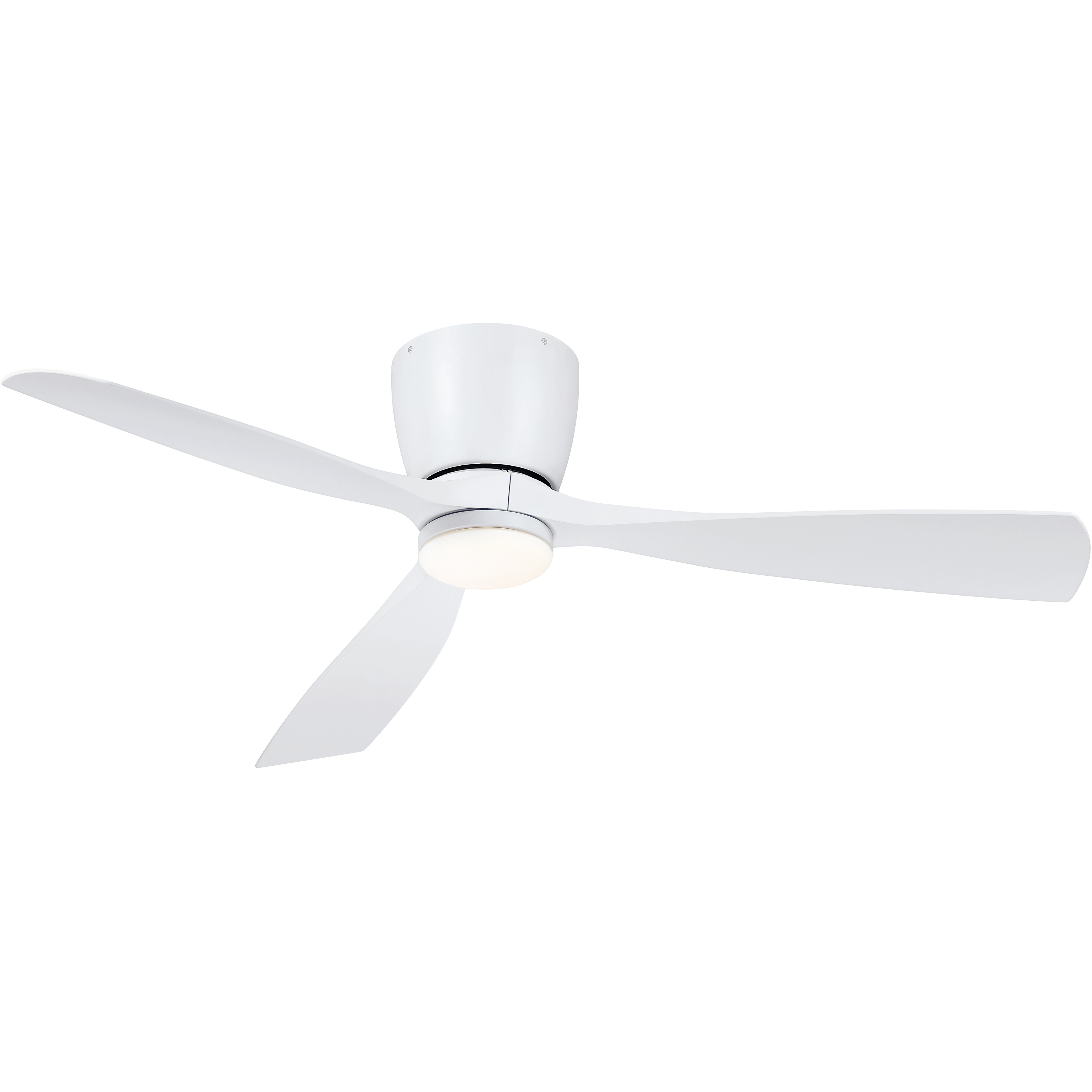

Klinch - 52 inch - MW with LED LK

Shipping Method:

Ground

SKU:

FPS7679MW

UPC:

840522905199

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Efficiency:

102

Lamping Category:

LED

Lamping Features:

Watts Per Bulb: 18

Lamping Included:

Bulbs Not Included

Lamping Type:

LED Module

Lead Wire Length:

11

Lumens:

1600

Primary Number of Bulbs:

1

Socket:

Connector Pin

Total Number of Bulbs:

1

Voltage:

120V

Wattage Max:

18.00

Dimensions and Measurements

Backplate/Canopy Height:

8.49

Backplate/Canopy Width:

8.49

Diameter:

52

Height:

10.21

Length:

52

Weight:

19.00

Width:

52

Fan Blade Information

Fan Blade Pitch:

15

Fan Blade Span:

52

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• Housing Diameter Inches: 8.49
• Cap Included Yes or No: Yes
• Included Control: TR500
• Included Control Type: Handheld
• Ceiling to Blade Edge Inches: 10.87
• Ceiling to Bottom (No LK) Inches: 8.85
• Ceiling to Bottom (With LK) Inches: 10.21
• Blade Reversible Yes or No: No
• Blade Material: Composite
• Blade Finish Method Type: Painted
• Motor Type: AC
• Motor Reversible Yes or No: Yes
• Motor Size: 172 X 17
• Motor Finish Method Type: Painted
• Reverse Switch Location: Motor Housing
• Number of Speeds: 3
• Avg Estimated Yearly Energy Cost: 10
• Avg Estimated Yearly Energy Cost on HIGH: 15
• Avg CFM Energy: 3744
• CFM Low: 1834
• CFM Medium: 4019
• CFM High: 5429
• Avg Energy Use (Watts): 37
• Watts Low: 11
• Watts Medium: 33
• Watts High: 55
• Avg Airflow Efficiency: 102
• Airflow Efficiency Low: 172
• Airflow Efficiency Medium: 121
• Airflow Efficiency High: 99
• RPM Low (II): 61
• RPM Medium (IV): 122
• RPM High (VI): 166
• Current Draw Low: 0.27
• Current Draw Medium: 0.42
• Current Draw High: 0.46
• Compatible Controls: WR500WH, WC2WH, WR501WH
• Compatible Wall Controls: WC1WH
• Fan Energy Star 4: No
• Light Kit Energy Star 4: No

Motor Wattage:

37

Unit Air Flow:

5429

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

Prop 65:

Yes

UL Ratings:

UL/cUL Damp

Warranty:

Limited Lifetime Warranty

Additional Details

Features:

• POWER: The 3-speed, energy efficient AC motor provides airflow up to 5,429 CFM
• LIGHTING: Includes integrated 18-watt dimmable LED light kit with opal frosted glass shade
• TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
• CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
• LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
• FINISH: Matte White ceiling fan from the Klinch Collection features 3 Matte White blades
• SAVINGS: Features a reversible motor that allows you to change the direction of airflow seasonally, helping maximize comfort throughout the year while supporting more efficient heating and cooling in your home.
• INSTALLATION: Mounts flush on a flat ceiling using the included ceiling bracket, making it ideal for rooms with low ceilings
• WARRANTY: Limited Lifetime Warranty for the original purchaser, providing long-term motor coverage and dependable performance you can trust. For assistance, contact Fanimation Tech Support at 1-888-567-2055
• Additional Features:
  • Shade Finish: Opal Frosted
  • Compatible Accessories: WFR50
  • Voltage Cycles: 60 Hz
  • Regulated Product Yes or No: Yes
  • DOE Classification: LSSD
  • Exempt from DOE Procedure: No
  • DOE-FTC Uploaded: Yes
  • CEC Uploaded: Yes
  • Prop 65 Warning: This product can expose you to chemicals including Lead whic

Glass Features:

Opal Frosted

Switch Features:

Motor Housing

Shade Information

Shade Features:

Opal Frosted
